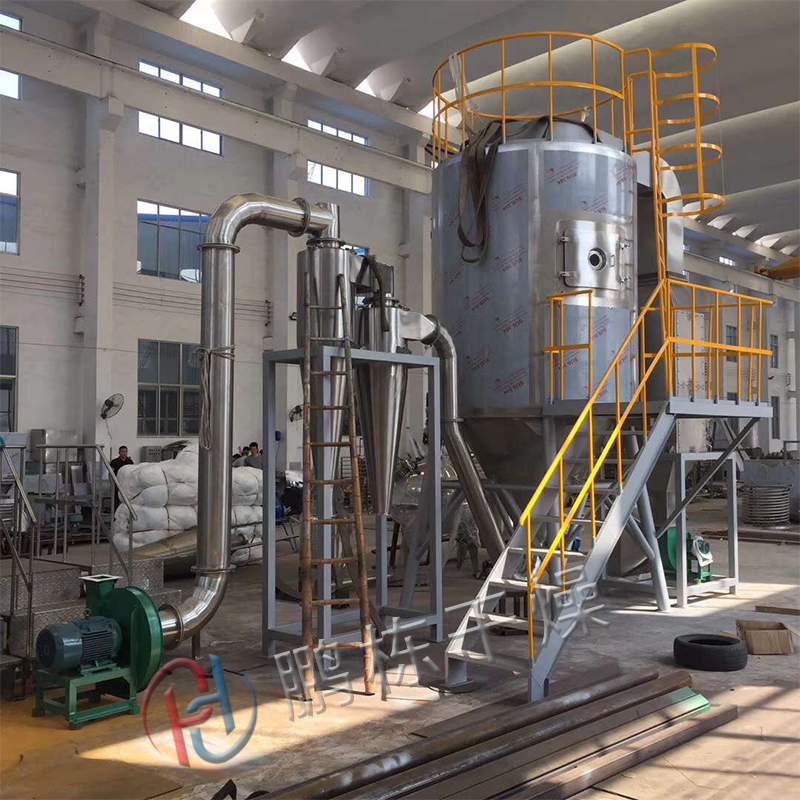

LPG centrifugal spray dryer
keyword:LPG centrifugal spray dryer,centrifugal spray dryer
CLASSIFICATION:Product Center -> Drying series
DESCRIPTION:
Spray drying is widely used in liquid process forming and drying industry. It is suitable for producing powder and granular solid products from solution, emulsion, suspension and paste liquid raw materials.


Details

Video

Product introduction:

Spray drying is widely used in liquid process forming and drying industry. It is suitable for producing powder and granular solid products from solution, emulsion, suspension and paste liquid raw materials. Therefore, when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product should meet the requirements, spray drying is a good process.


Technical parameter:

Item \ Model

25

50

100

150

200

500

800

1000

2000

3000

4500

6500

Inlet temperature℃

140-350Automatic control

Outlet temperature℃

80-90

Spray form

High-speed centrifugal atomizer (mechanical transmission or stepless frequency conversion speed regulation is available)


Water evaporation

kg/h


25

50

100

150

200

500

800

1000

2000

3000

4500

6500

Atomizer speed rmp

25000

22000

21500

18000

16000

12000-13000

11000-12000

Atomizing disc diameter mm

60

120

150

180-210

Determined according to process requirements

Electric heating high power kw

31.5

60

81

99

Determined according to process requirements

Footprint length m

1.6

4

4.5

5.2

7

7.5

12.5

13.5

14.5

According to the process flow, site conditions and user requirements

Footprint width m

1.1

2.7

2.8

3.5

5.5

6

8

12

14

Tower height m

1.75

4.5

5.5

6.7

7.2

8

10

11

15

Lifting height of tower body m


2.5

2.5

3.2

3.2

3.2

3.2

3.2

3.2

Note: Moisture evaporation is related to material characteristics, solid content and hot air inlet and outlet temperature. The user can select the heating method according to the local energy situation, and select the dust collection and dust removal method according to the material characteristics.



Working principle:

The working process of the unit is the feed liquid through the diaphragm pump high pressure input, spray mist droplets, and then flow down with hot air, most of the powder particles are collected by the bottom of the tower discharge port, exhaust gas and its tiny powder is separated by the cyclone separator, exhaust gas is discharged by the extraction fan, powder is collected by the pollinator cylinder located at the lower end of the cyclone separator, the fan outlet can also be equipped with a secondary dust removal device.



Product characteristics:

●  The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, and 95%-98% of the water can be evaporated instantly in the hot air flow, and the drying time is only a few seconds, which is suitable for the drying of heat-sensitive materials.

●  The product has good uniformity, fluidity and solubility, high product purity and good quality.

●  The production process is simplified and the operation control is convenient. For the moisture content of 40-60% (specific materials can reach 90%) of the liquid can be dried into powder products, dry without grinding and screening, reduce the production process, improve product purity. The product particle size, loose density, moisture, in a specific range can be adjusted by changing the operating conditions, control and management are very convenient.
