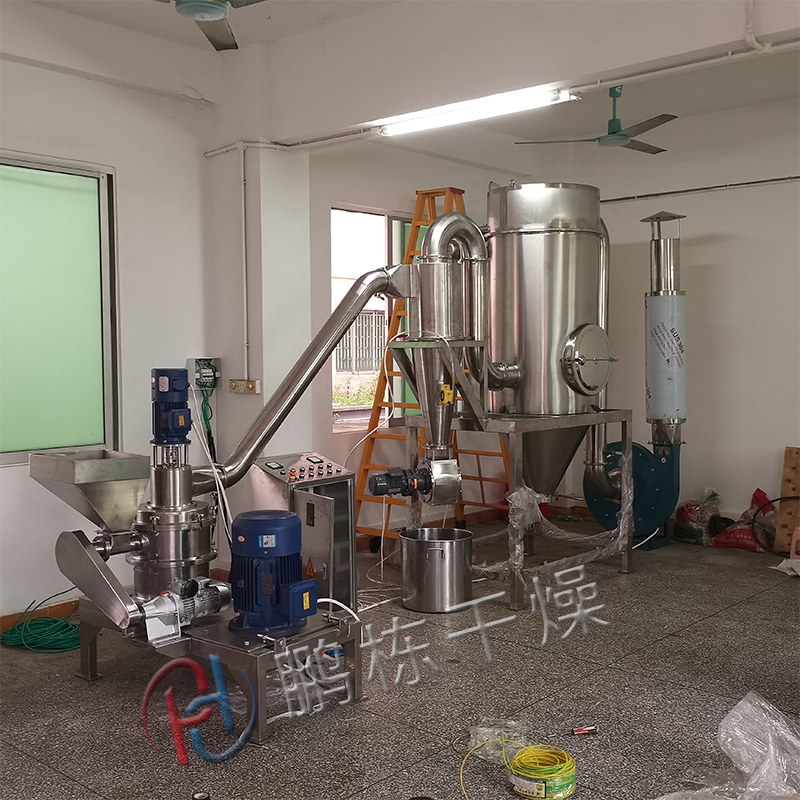

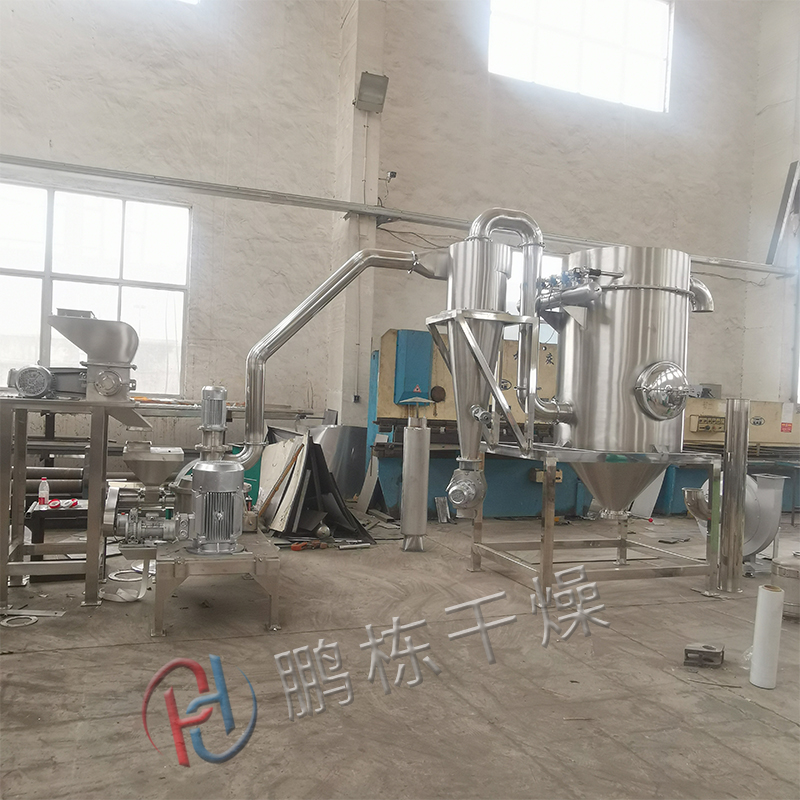

WFJ ultrafine mill
keyword:WFJ ultrafine mill,ultrafine mill
CLASSIFICATION:Product Center -> Crushing series
DESCRIPTION:
WFJ- ultrafine mill, by the main engine, auxiliary engine, electric control three parts, compact design, reasonable structure, with wind selection, no screen no net. The machine is equipped with a grading mechanism, which can make the crushing and grading complete at one time. The negative pressure conveying makes the heat generated in the chamber of the crushing operation discharge continuously, so it is also suitable for the crushing of heat-sensitive materials.


Details

Video

Product introduction:

WFJ- ultrafine mill, by the main engine, auxiliary engine, electric control three parts, compact design, reasonable structure, with wind selection, no screen no net. The machine is equipped with a grading mechanism, which can make the crushing and grading complete at one time. The negative pressure conveying makes the heat generated in the chamber of the crushing operation discharge continuously, so it is also suitable for the crushing of heat-sensitive materials.


Technical parameter:

Specification and model

WFJ-15

WFJ-30

Productive capacity(kg/h)

10-200

30-800

Feed size(mm)

<10

<15

Discharge size (mesh)

80-320

80-320

Total power (kw)

13.5

46

Master speed(r/min)

-6000

-3800

Overall dimensions (L x W x H)(mm)

4200x1200x2700

9000x1500x3800

Weight(kg)

850

1500


Working principle:

The material enters the grinding chamber through the feed door through the spiral conveyor, and is cut and crushed by the high-speed rotating blade. The material is transported to the cyclone separator by the method of negative pressure air transport. The discharged material dust is recovered by the vacuum box through the cloth bag or filter cartridge, and no dust flies in the production process, and can improve the utilization rate of materials and reduce the cost of enterprises.


Product characteristics:

The machine has a wide range of adaptability, continuous production process and adjustable discharge particle size.
